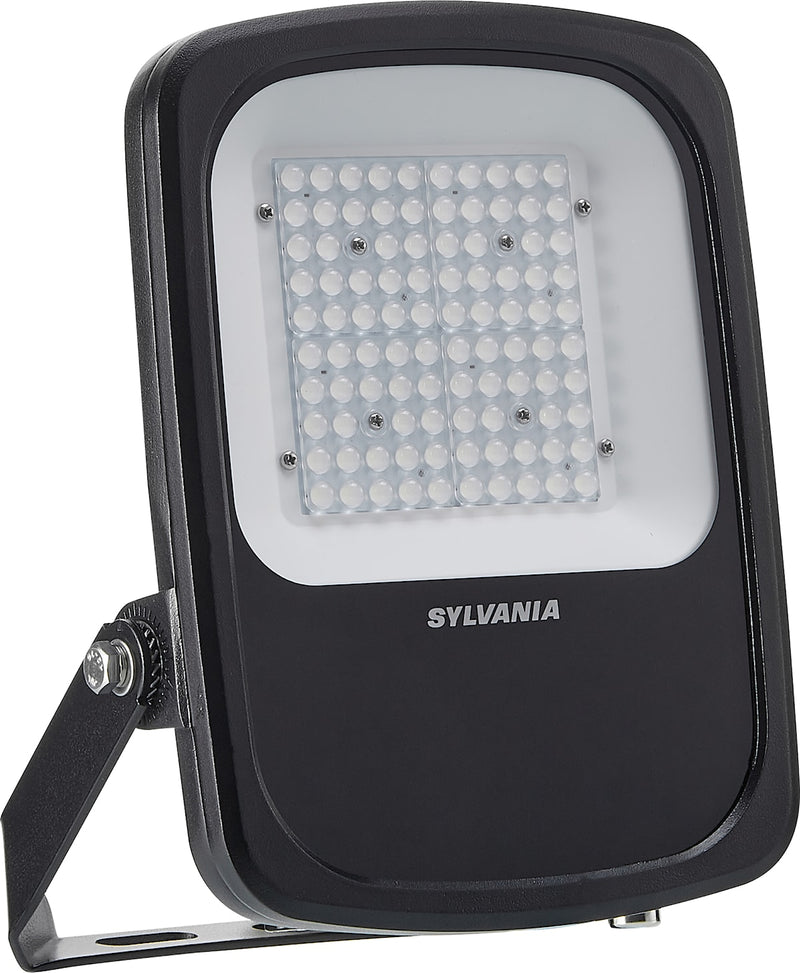

Sylvania Kalani ASYM LED Floodlight 23W 3400lm 4000K IP66 IK08 – Outdoor Use
includes VAT 25.5% Shipping costs are calculated at checkout.
The Sylvania Kalani ASYM is an LED floodlight designed for outdoor use, featuring an asymmetrical light distribution (65° × 120°) suitable for illuminating facades, outdoor areas, and entrances. Its aluminum body, clear glass cover, and IP66 protection withstand weather and moisture, while a 100,000-hour lifespan makes it a maintenance-free solution. The luminaire is supplied as a ready-to-install package with a 1-meter connection cable and an adjustable mounting bracket.
For outdoor use (IP66). Protection class I — requires protective earthing. Not dimmable. 230 V mains voltage.
Technical specifications
- Product type: LED floodlight, outdoor use
- Brand: Sylvania
- Series: Kalani ASYM
- Power: 23 W
- Luminous flux: 3400 lm
- Luminous efficacy: 148 lm/W
- Color temperature: 4000 K (neutral white)
- Color rendering index (CRI): 80
- Light distribution: asymmetrical 65° × 120°
- Protection class: IP66 (dust-tight and jet-proof)
- Impact resistance: IK08
- Electrical class: protection class I (earthed)
- Lifespan: 100,000 hours (L80B50)
- Dimmable: no
- Connection: pre-wired 3 × 1.0 mm², 1.0 m connection cable
- Housing: aluminum, clear glass cover
- Color: black (RAL 9017)

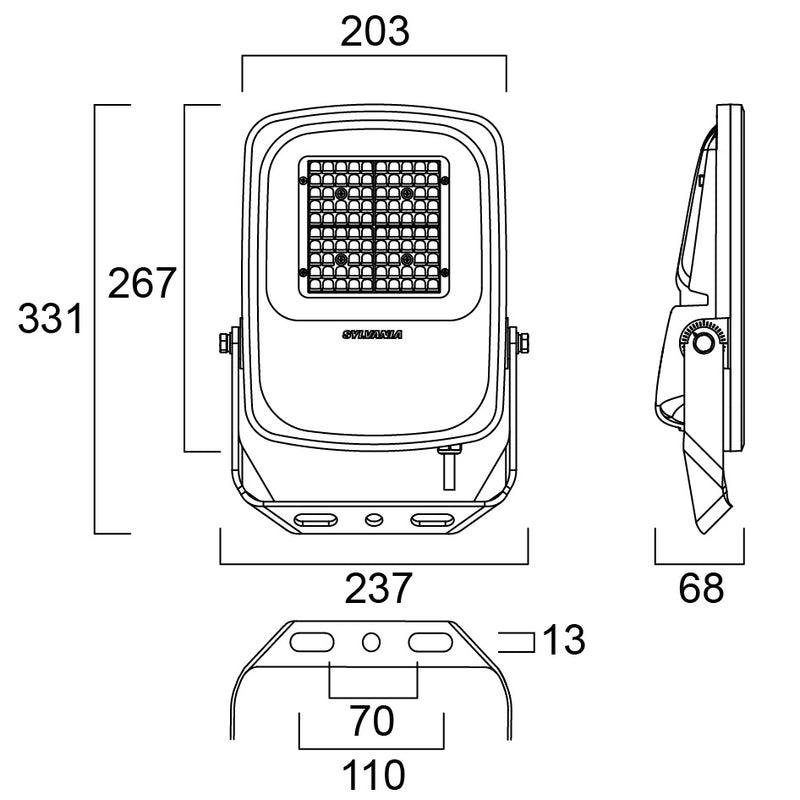

- Dimensions: 331 × 237 × 68 mm
- Weight: 2.3 kg
- Ambient temperature: −30 °C – +50 °C
- Approvals: ENEC, D-marking (low surface temperature)
- Warranty: 5 years
- Product code: 0056803
Compatibility and installation
Asymmetrical light distribution — what it's suitable for
The Kalani ASYM model features asymmetrical light distribution (65° × 120°). Asymmetrical optics direct light forward and downwards, ensuring even illumination of the surface and preventing glare. This is particularly suitable for:

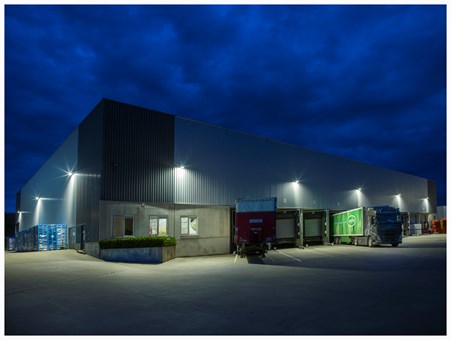

- Illuminating facades and wall surfaces
- Illuminating entrances and doorways
- Illuminating outdoor areas and pathways
- Illuminating advertising signs and guidance panels
Installation methods
The floodlight is supplied as a ready-to-install package, including a 1-meter connection cable (3 × 1.0 mm²) and an adjustable mounting bracket:
- Wall or surface mounting: the mounting bracket is screwed to the wall or ceiling surface
- Pole mounting: possible with an optional pole bracket
The mounting bracket allows the luminaire to be tilted up and down, enabling precise adjustment of the light angle.
Electrical connection — protection class I
The luminaire is protection class I, meaning it requires protective earthing. Electrical connection may only be performed by a qualified electrician in accordance with current regulations. The connection cable is pre-wired, so only the supply cable needs to be connected during installation.
Not dimmable
The floodlight is supplied with a non-dimmable LED driver. Do not connect it to a dimmer — when connected to a dimmer, the luminaire may flicker or be damaged.
Durable construction — also for sports halls

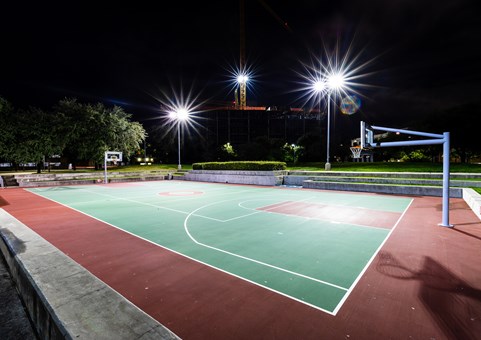

The aluminum body and IK08 impact resistance make the luminaire durable. The luminaire has been tested for ball impact resistance according to standards DIN 57710-13 and DIN 18032-3, making it suitable for sports and leisure facilities. The permissible ambient temperature is −30 °C – +50 °C.
Installation checklist
- Check that the mounting location can support the weight of the luminaire (2.3 kg)
- Turn off the power at the main switch before installation
- Attach the mounting bracket to the wall, ceiling, or pole
- Have an electrician connect the supply cable with protective earthing
- Adjust the tilting angle of the luminaire as desired
- Turn on the power and check operation
