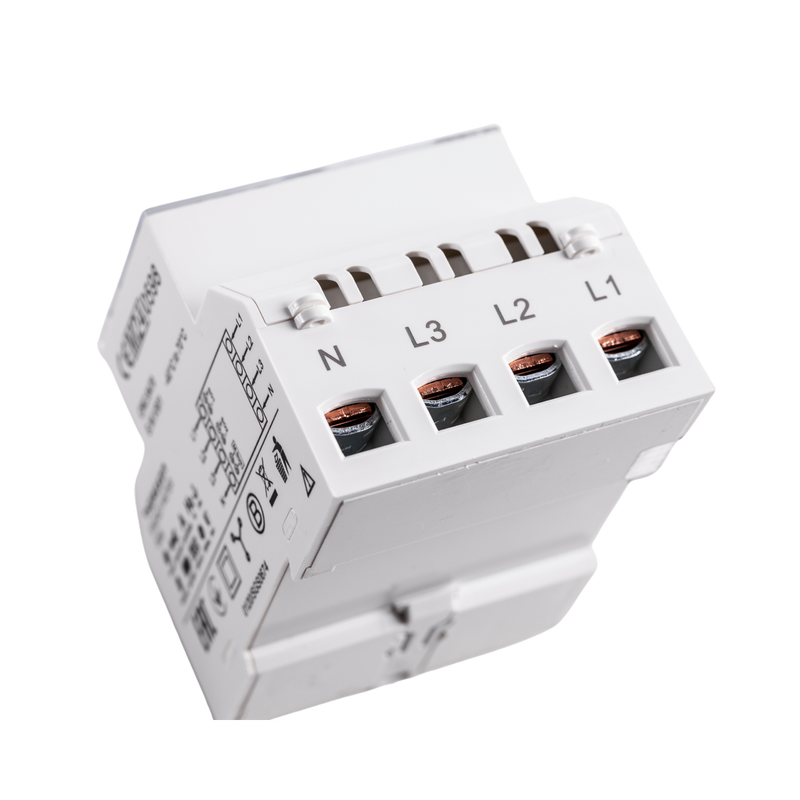

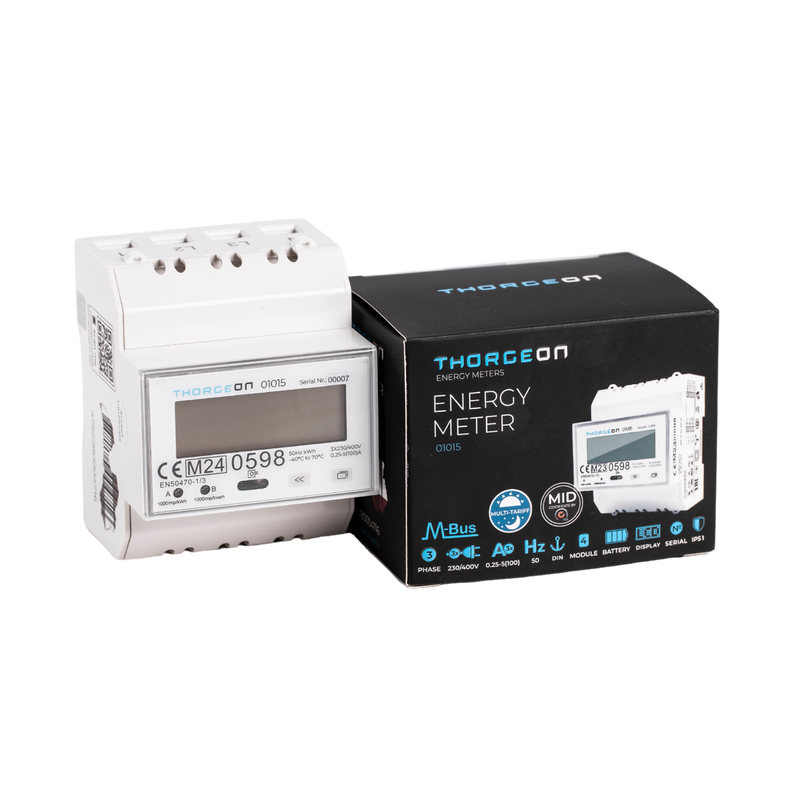

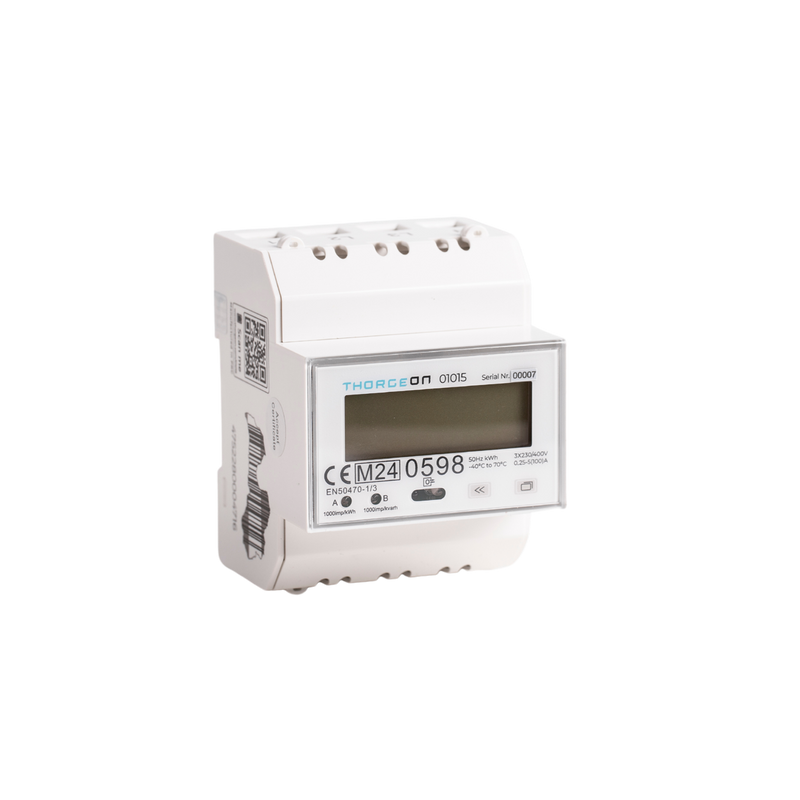

3-phase DIN rail mounted energy meter 80A M-Bus Multi-tariff MID certificate Thorgeon
SKU 01015
Original price
€325.75
-
Original price
€325.75
Original price
€325.75
€325.75
-
€325.75
Current price
€325.75
includes VAT 25.5% Shipping costs are calculated at checkout.
Availability:
Tilaustuote
TilaustuoteToimitusaika noin 2 viikkoa
Order product
Delivery time approx. 2 weeks
Product code: 4752280004716
Technical data:
- Nominal current (In): 5 A
- Maximum current (Imax): 80 A
- Nominal voltage (Un) N-L: 230 V
- Frequency: 50-60 Hz
- Pole system: Three-phase
- Impulse rate: 1000 Imp/kWh (kvarh)
- Mounting method: DIN rail adapter (DRA)
- Module width: 4
- Width: 75 mm
- Depth: 65 mm
- Height: 105 mm
- Protection class (IP): IP20
- Measuring device type: Electronic
- Accuracy class: B
- Model: Direct measurement
- Energy type: Active power
- Tariff: Multiple tariffs
- Tariff control: Internal
- Approval: Measuring Instruments Directive
- Pulse output: Electrical
- Pulse type: S0
- Display type: Digital
- Interface type: M-Bus (wired)
- Built-in battery: Yes
- LCD display: Yes
Brochure (English)
User manual (English)
